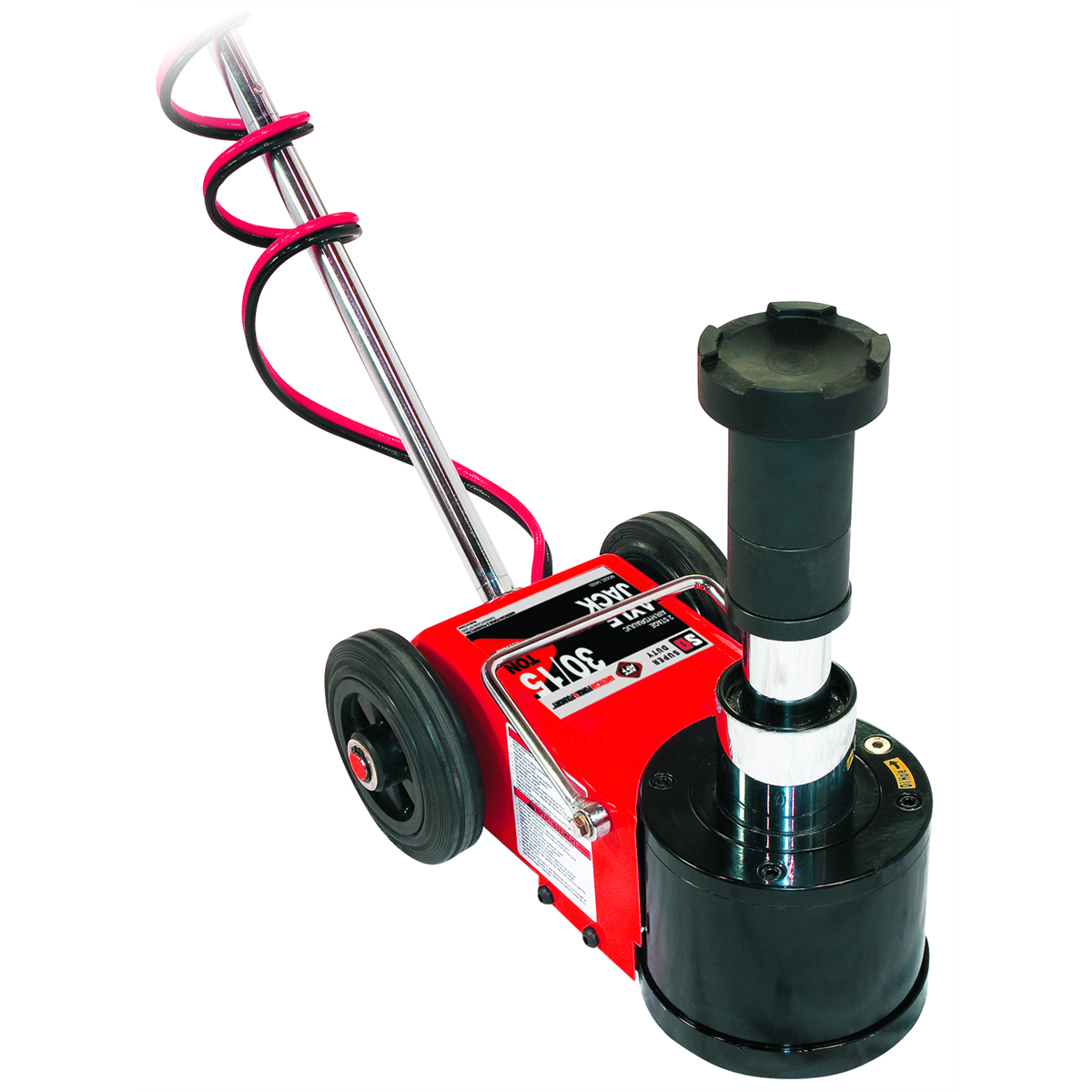

American Forge & Foundry 30/15 Ton 2‑Stage Air/Hydraulic Axle Jack 545SD
$1,560.00
Ordered After you place the order, we will need 1-3 days to prepare the shipment
Order Ready Orders will start to be shipped
Delivered Estimated arrival date range: Oct 02 - Oct 05
American Forge & Foundry AFF – Axle Jack – 2 Stage – 30/15 Ton Capacity – Air/Hydraulic – SUPER DUTY 545SD
Product Description
The AFF 545SD 30/15 Ton 2-Stage Air/Hydraulic Axle Jack is engineered for service-vehicle and heavy-duty applications where low clearance and high capacity meet. With a dual-stage design, it lifts up to 30 tons in the first stage and 15 tons in the second, accommodating drop-axle and low-clearance setups. Features include removable 1.75″ and 3″ extensions, a descent metering valve for controlled lowering, dual polished chrome pistons for enhanced sealing, and a built-in overload safety system to prevent misuse beyond the rated capacity. Works at 116-145 psi air pressure. Ideal for truck, bus or trailer service environments.
Features
- Color: Red/Black
- Capacity: 30/15 Tons
- Product Type: Axle Jack
- Stages: 2
- Power Type: Hydraulic
- Operation Type: Air Assist
- Duty Level: Super Heavy Duty
- Minimum Height (in.): 5.92″
- Maximum Height without Extensions: 11.42″
- Maximum Height with Extensions: 16.17″
- Ram Lift (in.) – Stage 1: 2.91″
- Ram Lift (in.) – Stage 2: 5.59″
- Ram Lift (in.) – Stage 3: N/A
- Capacity (T) – Stage 1: 30 Tons
- Capacity (T) – Stage 2: 15 Tons
- Capacity (T) – Stage 3: N/A
- Handle Length (in.): 54″
- Number of Handle Pieces: 1
- Handle Locking Positions: 90°/45°/180°
- Chassis Length (in.): 20″
- Chassis Width (in.): 16″
- Saddle Diameter: 4″
- Number of Extensions: 2
- Extension Sizes (in.): 1.75″ & 3″
- Extension Screw: N/A
- Wheel Diameter (in.): 8″
- Working Air Pressure: 116 – 174 PSI
- Weight: 77 Lbs.
- Warranty: 1 Year
- Certification: ASME/PASE 2019
- Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
- SUPER HEAVY DUTY, 2 Stage 30 Ton and 15 Ton built tough for the rigors of the Heavy-Duty Trucking, Agricultural and Fleet business.
- An integral Descent Metering Valve maintains a controlled and safe lowering of the load
- The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions
- Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.
- Built in overload safety valve prevents damage to unit due to excessive load.
- The extra light weight and portability makes this the ideal service jack for Service Vehicles.
- 2 Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack.
- The extra-long removable handle and rugged rear wheels make for easy positioning in hard-to-reach places.
- Comes with 2 extensions (3″, 1.75″) and saddle adapter.
- Air assisted lowering speeds up ram retraction.
- Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions.
- Low height makes this one of the lowest operating heavy jacks on the market.
- Ideally suited for drop axles and other low clearance jobs.
Specifications
| Capacity | Ram Lift | Low Height | High Height | High Height w/Ext. | Working Air Pressure | Ship Weight |
| 30 / 15 Tons | 2.91″ / 5.59″ | 5.92″ / 5.92″ | 8.82″ / 11.5″ | 14.57″ / 17.25″ | 116 to 145 psi | 77 lbs. |
